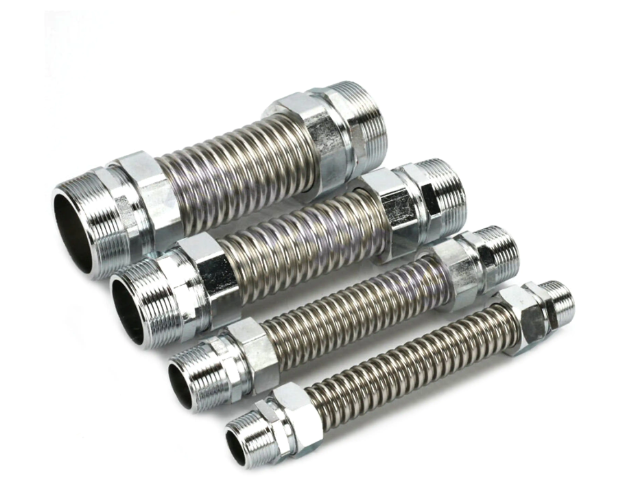

русский304 Bellows Oil Pipes are prone to corrosion in special environments, mainly due to the combined effects of its material properties, working environment and use conditions. To avoid corrosion problems, you can start from the following aspects:
Choose the right material
Upgrade the material grade: Although 304 stainless steel has good corrosion resistance, it may not meet the requirements in some special environments (such as high temperature chloride environment or strong acid and alkali medium). You can consider using materials with higher corrosion resistance, such as:
316L stainless steel: Compared with 304, 316L contains more molybdenum and can better resist pitting and crevice corrosion.
Duplex stainless steel (such as 2205): This material combines the advantages of austenitic and ferritic stainless steels and has higher strength and corrosion resistance.
Nickel-based alloys (such as Inconel or Hastelloy): Suitable for extreme corrosive environments, especially under high temperature and high pressure conditions.
Surface treatment: Enhance the corrosion resistance of bellows through plating or coating technology. For example:
Coating with anti-corrosion coatings (such as epoxy resin or polytetrafluoroethylene).
Perform passivation treatment to form a dense oxide film to improve corrosion resistance.
Optimize design
Reduce stress concentration: The design of the bellows should try to avoid sharp corners or irregular shapes, which are easy to become the starting point of corrosion. Local stress concentration can be reduced by optimizing the corrugation shape and wall thickness distribution.
Add protective structure: Install a protective sleeve or lining on the outside of the bellows to isolate the corrosive medium from directly contacting the bellows surface.
Reserve safety margin: Fully consider the working conditions during design to ensure that the bellows can withstand corrosion and mechanical loads within the expected life.
Control the working environment
Reduce the concentration of corrosive media: If possible, adjust the composition of the conveying medium to reduce the corrosive substances (such as chloride ions, sulfides, etc.) in it.
Adjust temperature and pressure: High temperature and high pressure will accelerate the corrosion reaction, so the working conditions should be controlled within the tolerance range of the material as much as possible.
Keep dry: Moisture is one of the important factors causing corrosion. Reduce the impact of moisture on the bellows through dehumidification equipment or sealing measures.
Improve manufacturing process
Strictly control welding quality: The welding area is one of the most prone to corrosion in bellows. Use advanced welding technology and equipment to ensure that the weld is uniform and defect-free.
Heat treatment optimization: Eliminate welding residual stress through appropriate heat treatment process, improve the grain structure of the material, and thus improve corrosion resistance.
Surface finish improvement: Rough surfaces are prone to accumulate corrosive substances, so the surface finish of the bellows should be improved by polishing or grinding.
Regular maintenance and monitoring
Regular inspection: Establish a regular inspection system, focusing on observing the appearance, thickness changes, and whether there are cracks or leaks in the bellows.
Online monitoring: Use corrosion monitoring instruments (such as electrochemical sensors) to monitor the working status of the bellows in real time and detect potential problems in time.
Timely replacement: For bellows that have obvious signs of corrosion, they should be replaced in time to avoid further damage.
Avoiding corrosion of 304 Bellows Oil Pipes in special environments requires comprehensive measures from multiple aspects such as material selection, design optimization, manufacturing process, working environment control, and post-maintenance. Through scientific and reasonable scheme design and strict implementation standards, the service life of the bellows can be significantly extended, ensuring its reliability and safety under complex working conditions.
